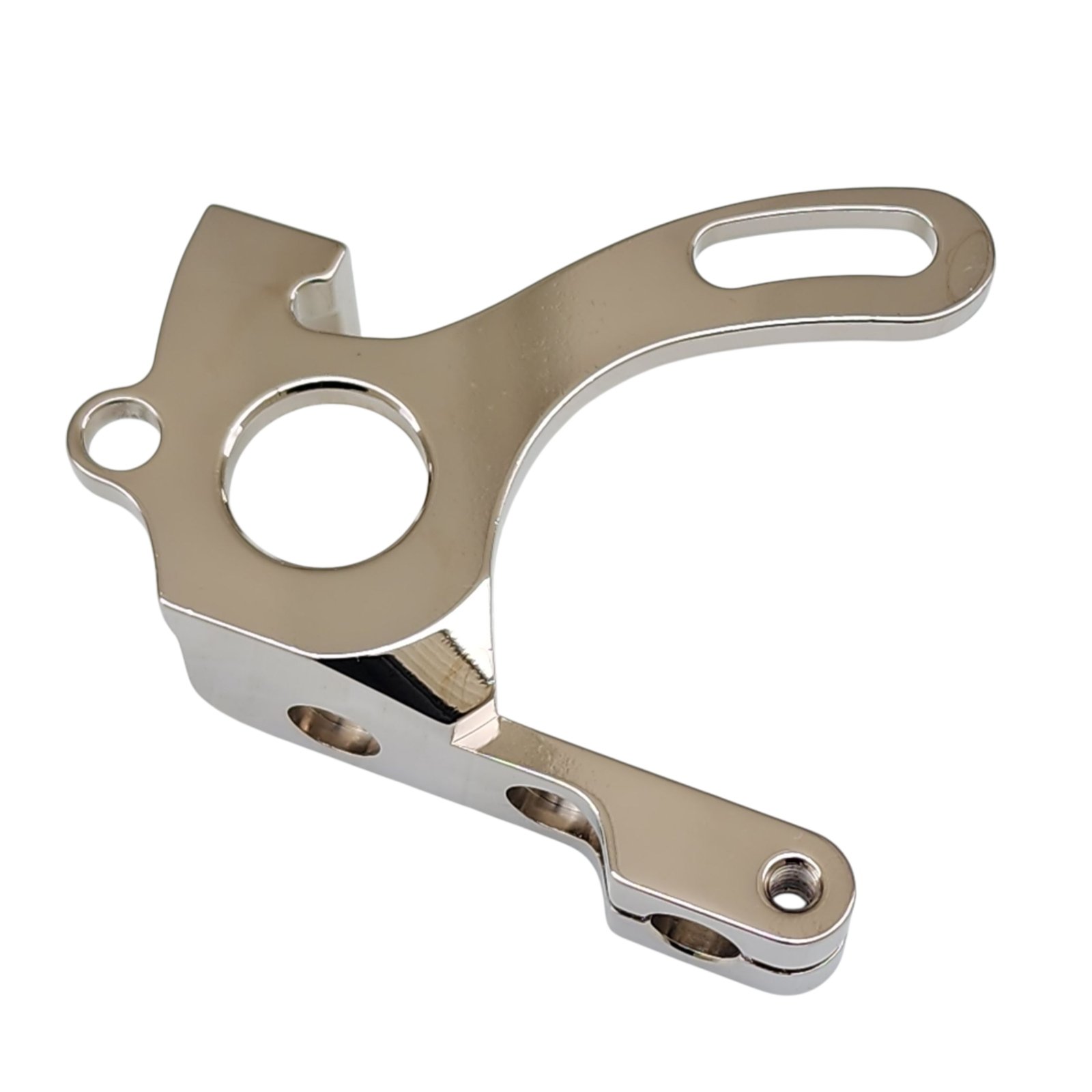

Frames are CNC Machined from a solid block of Low Carbon Steel in house.
***Suppled pre-finished in Black Nickel Plating***
Disclaimer-BLACK NICKEL ISN'T JET BLACK, BUT MORE "GUNMETAL" IN COLOR.
Classic style meshed with modern function. Every effort was taken to make these compact and light while maintaining structural rigidity.
Frames feature the following-
* 1 1/8" Coil Size
*Solid One Piece Construction
*2 Degree Spring Deck Angle
*Relieved Vise Slit for easy operation, long service life, and the ability to accommodate all tubes Stainless and Plastic.
*Slotted upright for easy Liner or Shader Builds.
*Inside corner Radii throughout where the Spring Deck and Base intersect with the Sideplate. This shores the structural rigidity of the entire frame with minimal weight addition.
*Frame weight is 80g.
*All threads are 8-32, and are Form Tapped. This differs from traditional cut taps and does not remove material in the tapping process. The threads are formed via deforming the material, which results in a stronger/longer lasting thread.
All orders require full insurance and signature confirmation.
Please contact us via [email protected] for orders outside the USA.
