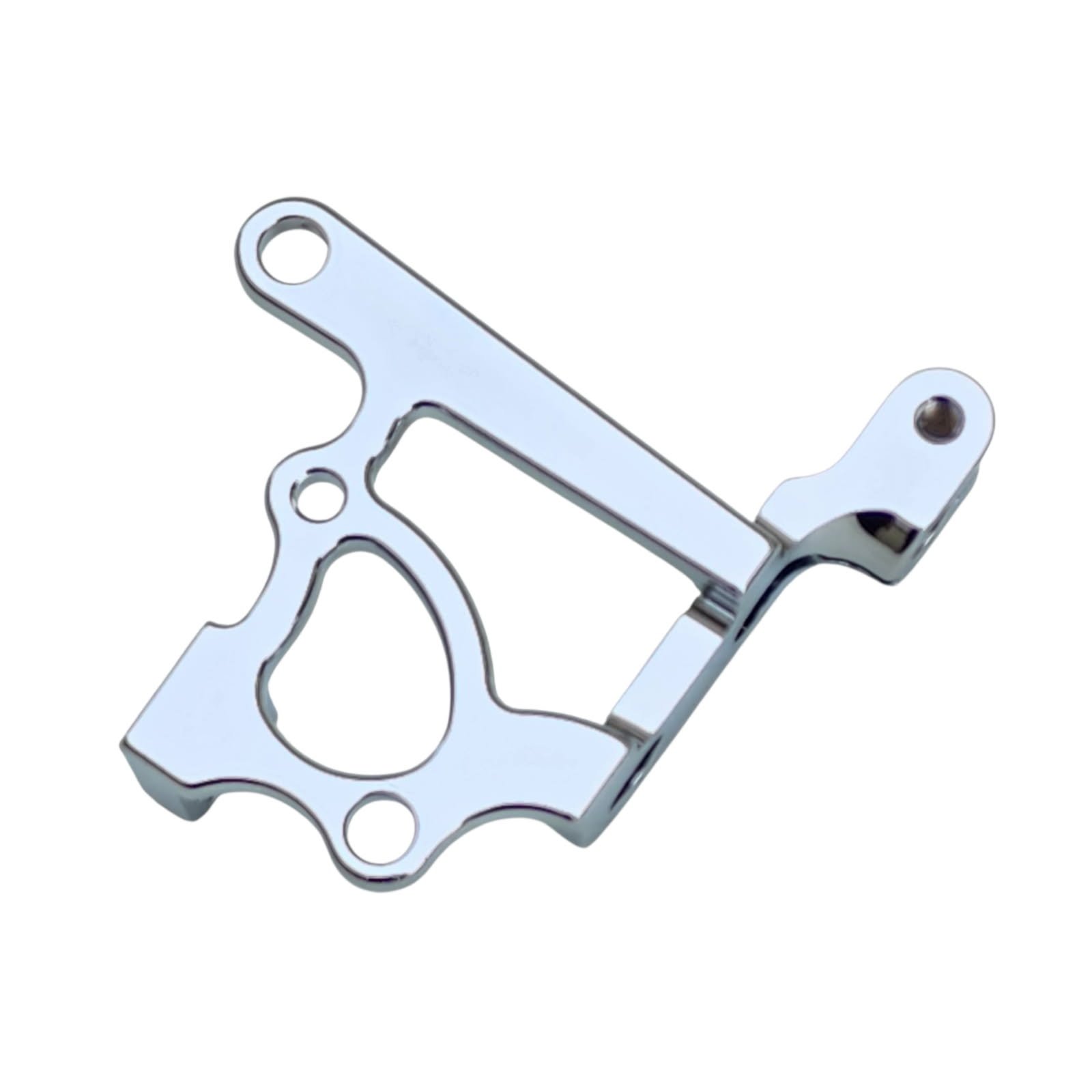

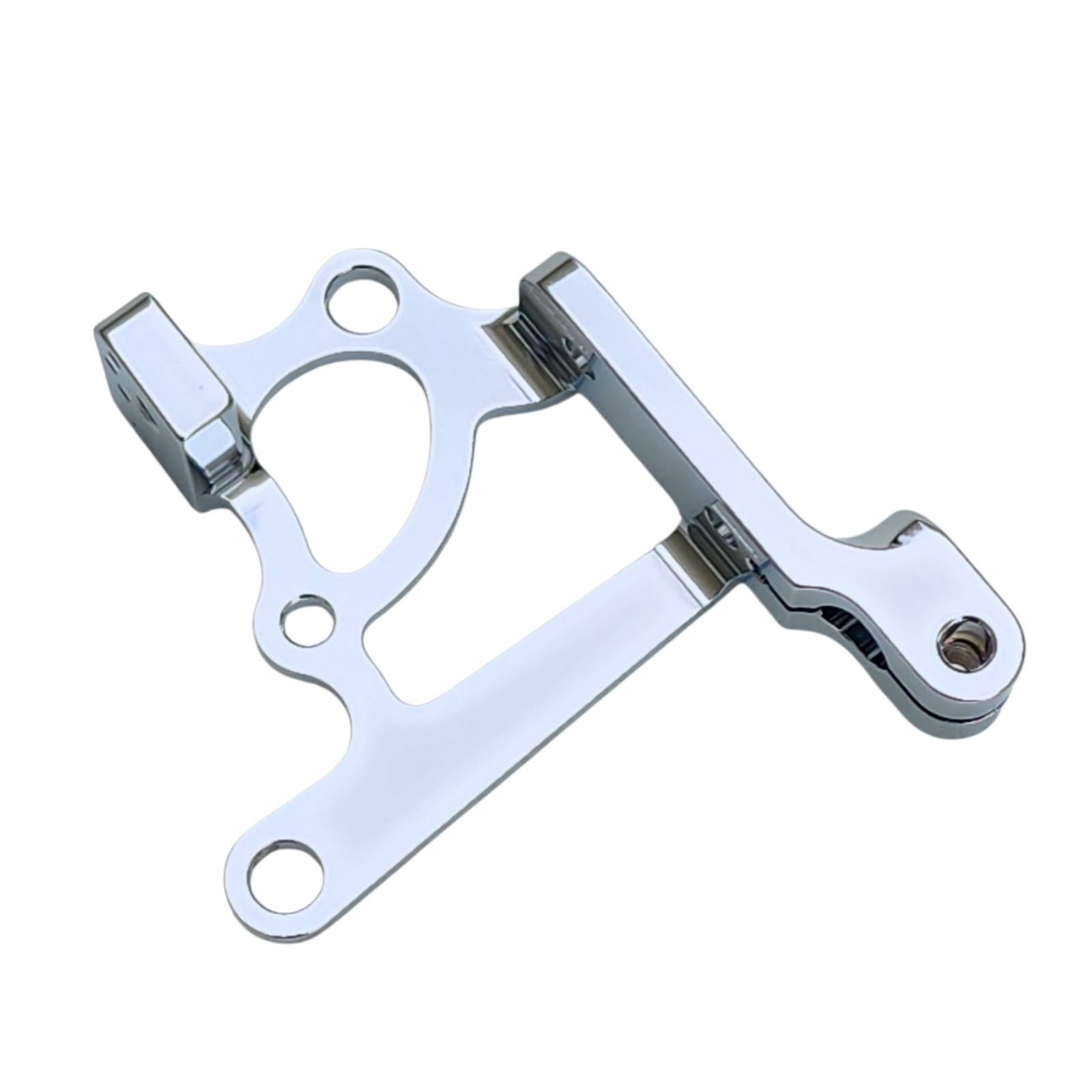

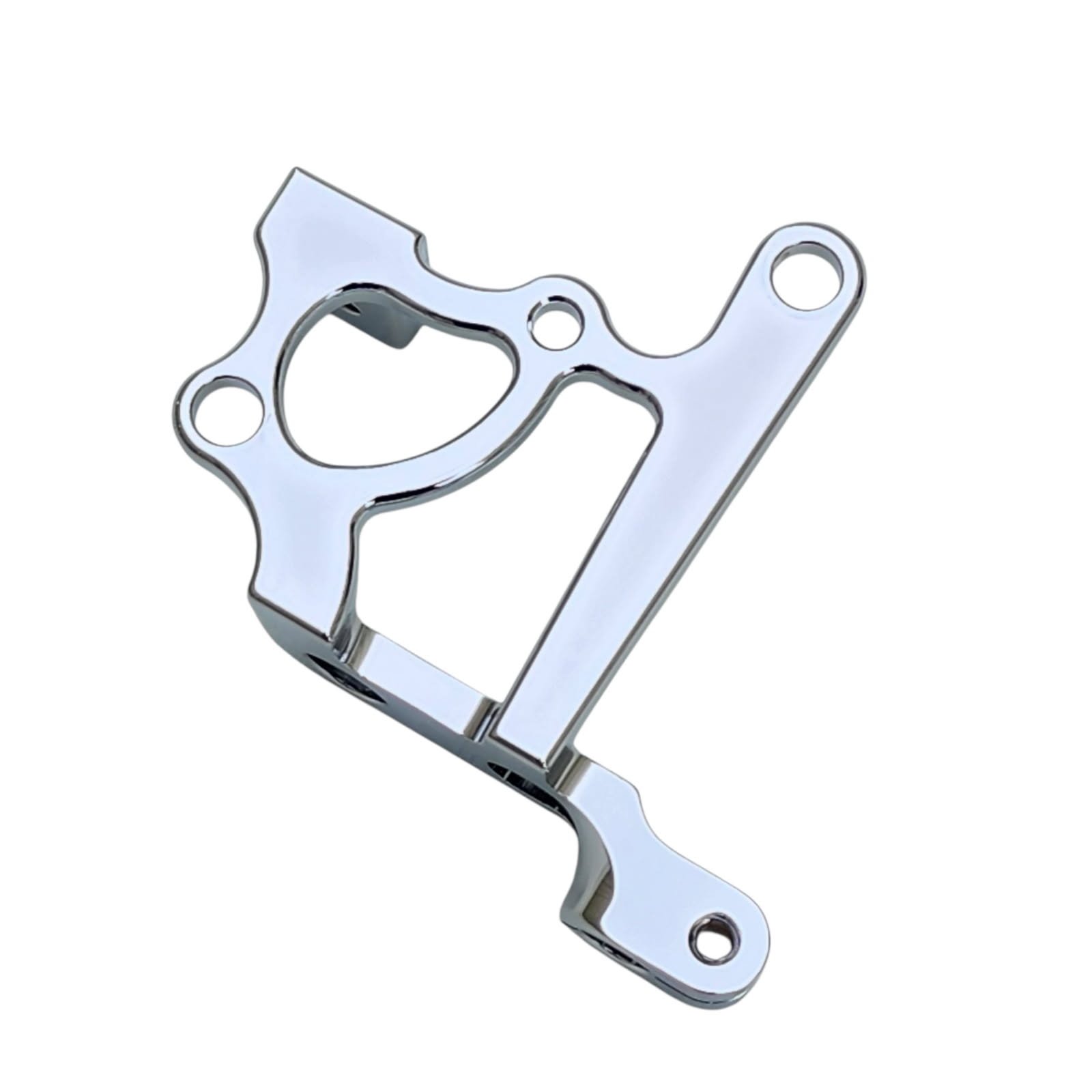

Frames are CNC Machined from a solid block of 7075 Aluminum in house.
***Chrome Plated***
Classic style meshed with modern function. Every effort was taken to make these compact and light while maintaining structural rigidity.
Frames feature the following-
* 1 1/8" Coil Size
*Solid One Piece Construction
*Spring Deck Angle is 2.5 Degrees
*Counterbored Coil Holes so screw heads don't protrude from the bottom of the frame. This adds some comfort as screw heads don't interfere with the hand.
*Designed for a Classic Cutback Liner Front Binder position.
*Inside corner Radii throughout all intersections. This shores the structural rigidity of the entire frame with minimal weight addition.
*Frame weight is 26g.
*All threads are 8-32, and are Form Tapped. This differs from traditional cut taps and does not remove material in the tapping process. The threads are formed via deforming the material, which results in a stronger/longer lasting thread.
